Cable Column UF-002 - UpForm

Producer: UpForm
Product code: UF-002
Cable Column UF-002 - UpForm
Cable Column UF-002 - UpForm
Cable Column UF-002 - UpForm
Cable Column UF-002 - UpForm
Cable Column UF-002 - UpForm
2 490,00 €
Lowest price in the 30 days before the discount:2 475,00 €Regular price:2 829,00 € -12%
2 829,00 €
2 490,00 €
  • Warranty Full Commercial 24 mos.
    Home warranty - 2 years
    The home warranty covers devices intended for home use.
    Light Commercial Warranty - 2 years
    The Light Commercial warranty covers devices operating in small hotels, rehabilitation clinics, health centres, etc. The maximum working time is 4 hours per day.
    Full Commercial Warranty - 2 years
    Full Commercial warranty covers devices working in gyms, schools, etc. If properly maintained, the maximum operating time is 12 hours per day.
  • Free return within 14 days
    Online shopping should be 100% safe for you. That is why we offer all of our buyers a free return policy of 14 calendar days.
  • Delivery direct from producer
    All Marbo Sport products are shipped directly from our warehouse in Central Europe.
  • Premium-Service direct from the producer
    All service / complaint matters are dealt with by our internal complaints and service department. This enables us to respond quickly to your needs and solve any problem immediately.
  • Quality for 40 years

The UF-002 up and down gantry station is part of the UpForm professional modular system, which allows you to train all muscle parts at any level of exerciser.


The handle shown in the photos is not included.

NOTE: In cases where the UF-002 will be used as a standalone, free-standing machine (without connection with other equipment from the F-LINE series) to obtain full stability of the structure it is necessary to anchor it to the ground, using the appropriate fixing pins for the surface.

The UpForm brand is a system solution aimed at commercial gyms and fitness clubs. Thanks to its modular design, UpForm equipment can be configured according to individual needs and capabilities.

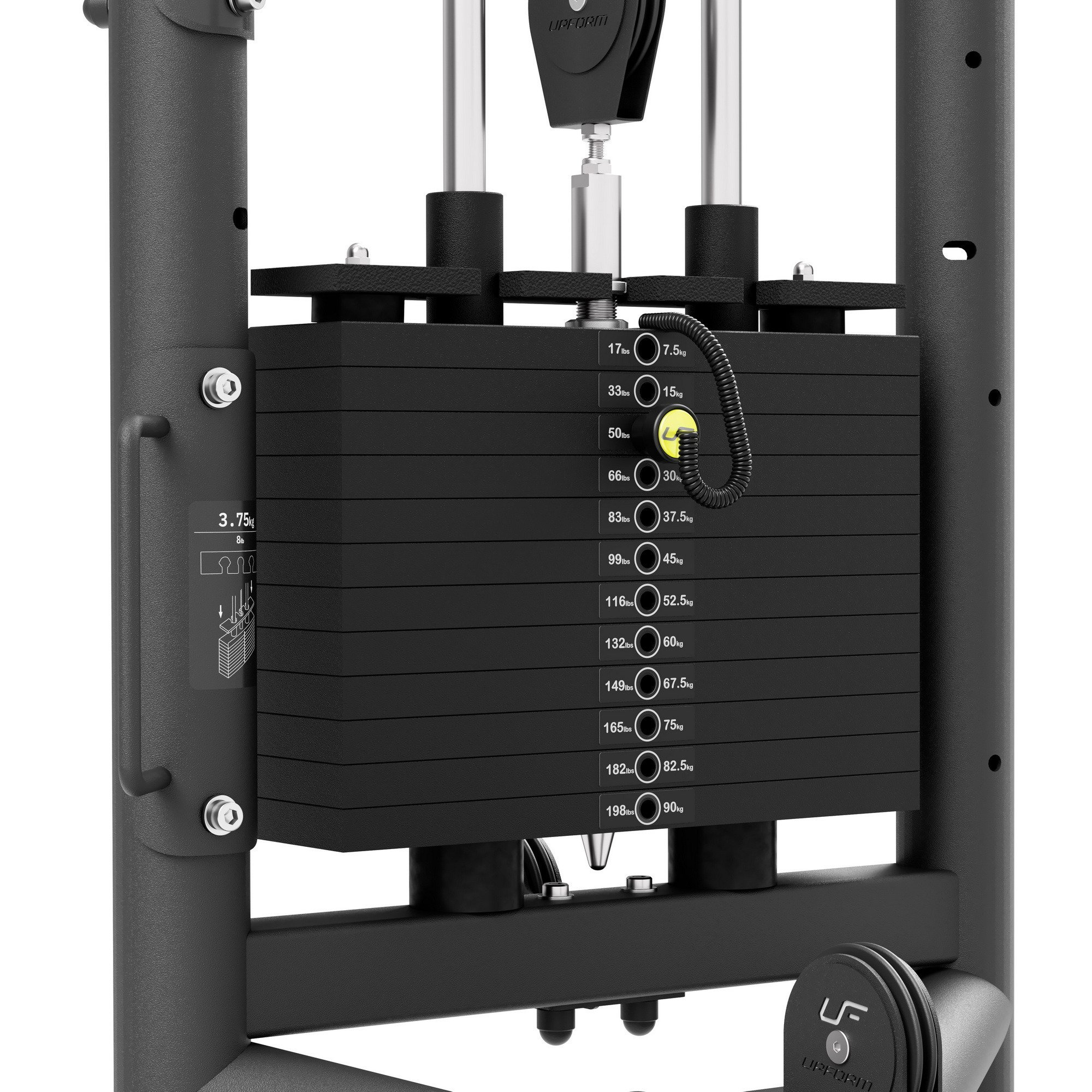

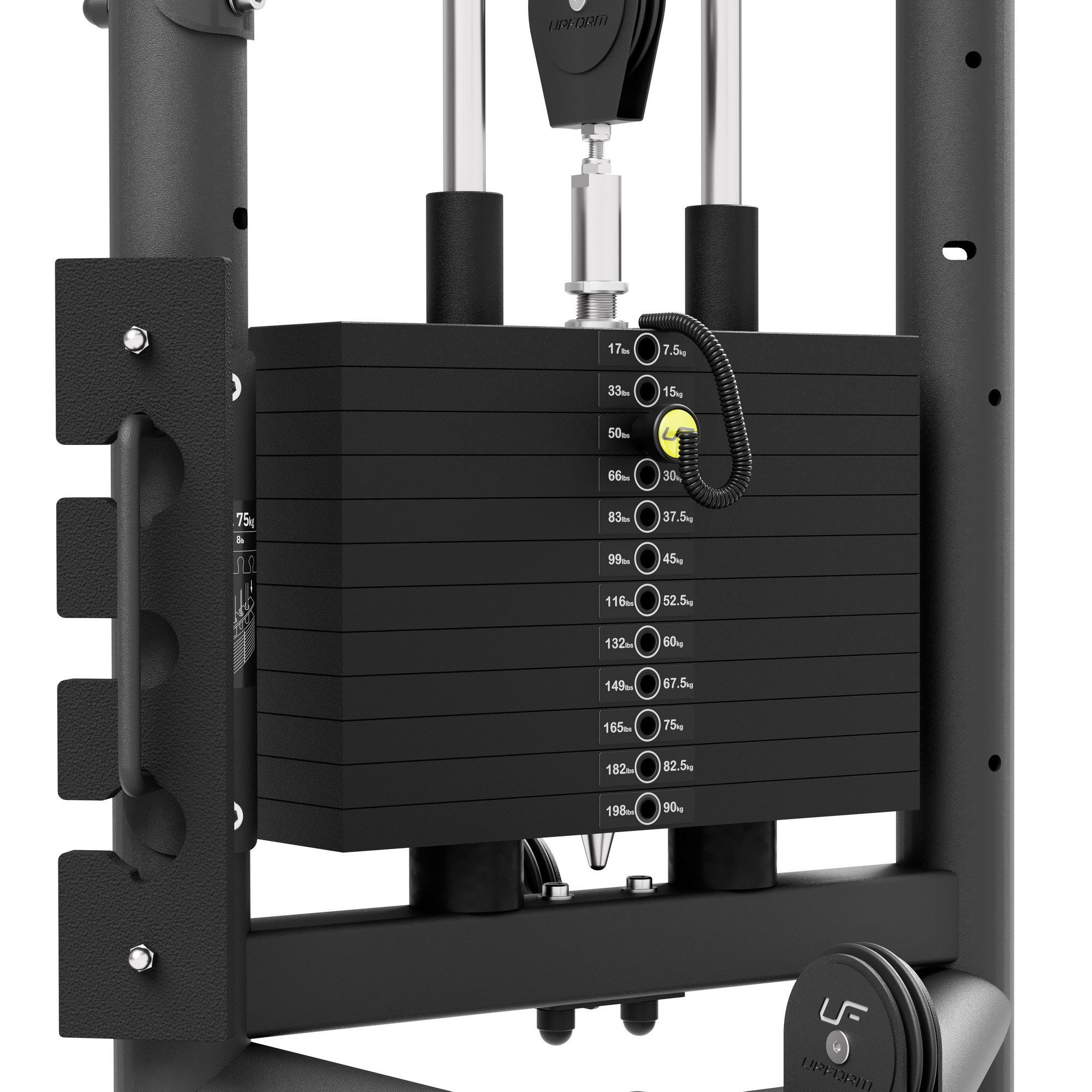

90 kg stack

The gantry station stack consists of 12 bars, each weighing 7.5 kg.

Each bar has a sticker indicating the total weight in kilograms and pounds.

The handle of the stake adjustment rod is made of aluminum, the rod itself is secured by a spiral cable.

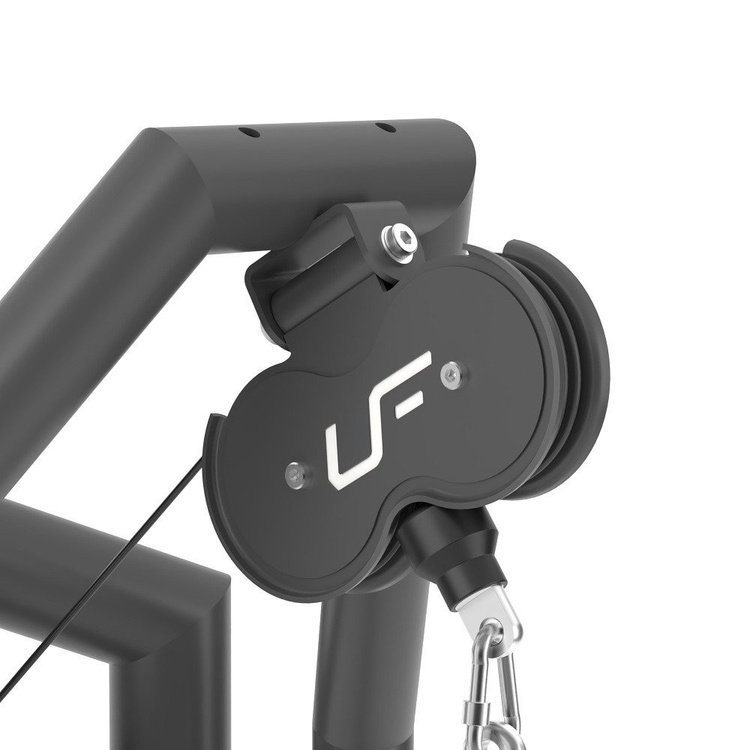

Upper arm

The upper arm of the machine extends to a height of 220 cm. Thanks to this, people with a height of more than 200 cm will also be able to exercise on the device.

We hid all the wheels under metal grilles with the UpForm logo. The black lagged cables are finished with a solid allen screw clamp and cushioned by a rubber bumper.

Half bar 3.75 kg

The half bar allows you to reduce the load adjustment stroke from 7.5 kg to 3.75 kg. This will allow you to achieve even greater precision when selecting your training intensity level.

The 3.75 kg bar has a special holder on the frame of the device for its storage.

Technical data
2148 mm
654 mm
689 mm
169 kg
12 x 7,5 kg,
1 x 3,75 kg
Transmission ratio
Maximum load
93,75 kg
100 x 60 x 3 mm,
pipe 60,3 x 3,2 mm,
pipe 76,1 x 3,2 mm
Frame color
Type of weights
weight stack
